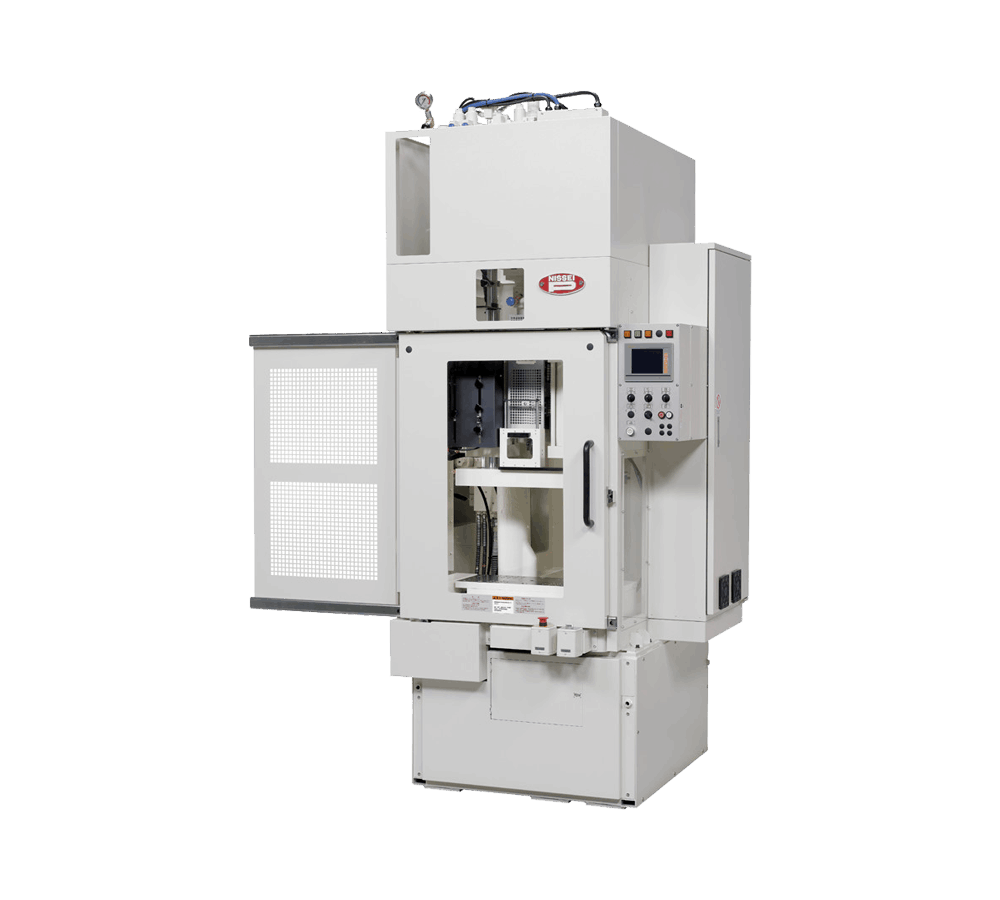

STX Series

COMPACT VERTICAL HYBRID TYPE INJECTION MOLDING MACHINE

Clamping force: 10~20 ton (11~22 USton)

  • Hybrid
  • Vertical
  • Compact Precision
  • Center or Parting* Injections
  • Single-Stage, Sliding, or Turntable
  • X-Pump System®


* Parting types are made to order.

STX Series
X-Pump

Flexible, Compact, and Energy-Efficient Vertical Machine!

Evolving from the ST Series, the STX Series is equipped with the hybrid X-Pump® System, inheriting its compact design and automation flexibility from the predecessor. It offers outstanding injection performance and energy-efficiency, possessing excellent capability for the molding of high-precision automotive and electronics parts.

Intelligent Hybrid
X-Pump® System

"Fusion of Hydraulic Control and Servomotor Drive Technologies"
The X-Pump System combines years of accumulated expertise in hydraulic and state-of-the-art servomotor drive technologies. Since the servomotor rotates at the required speed only when necessary, the extremely efficient X-Pump achieves drastic energy-savings. Furthermore, with exceptional stability in injection repeatability and controllability in low velocity/pressure range, it makes production of higher-precision and higher-quality molded products possible.

X-Pump image

Characteristics of X-Pump® Hybrid Machines

  • Quick injection response
  • Wide-ranging injection speed
  • Stable control in ultra-low velocity range
  • Long-sustained + high-pressure injection holding pressure
  • High-rigidity straight-hydraulic clamping unit
  • Excellent workability
  • Affordable, low maintenance cost, and low running cost
  • Long-lasting precision
  • Low noise
X-Pump efficiency

Characteristics of STX Series

High-response injection: response time: approx. ½*

High-speed injection: injection speed: 1.3 times faster*

Stable control in ultra-low speed range

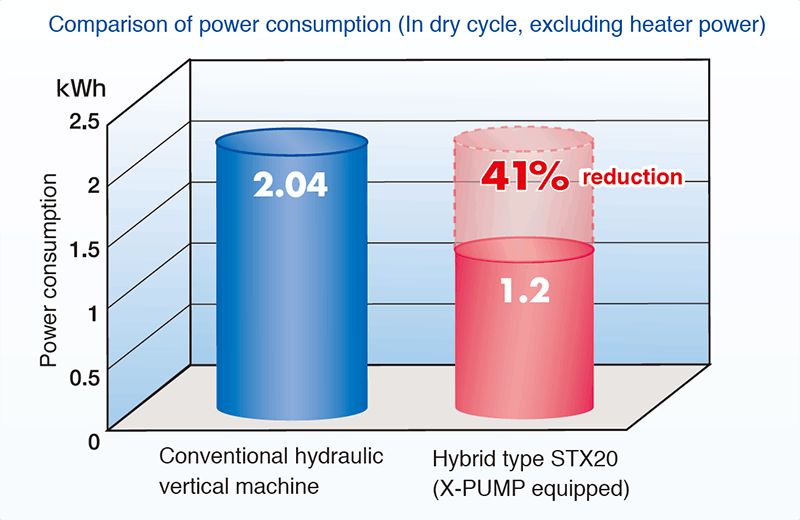

Energy-saving: power consumption: approx. 40%* less

Space-saving design: floor dimensions 860mmx850mm for STX10 and 900mmx1000mm for STX20

Tie bar-less: approaching the mold from four different angle and specious work space around the mold

Automation adaptability: excellent layout flexibility and automation adaptability



*In comparison with the conventional machines

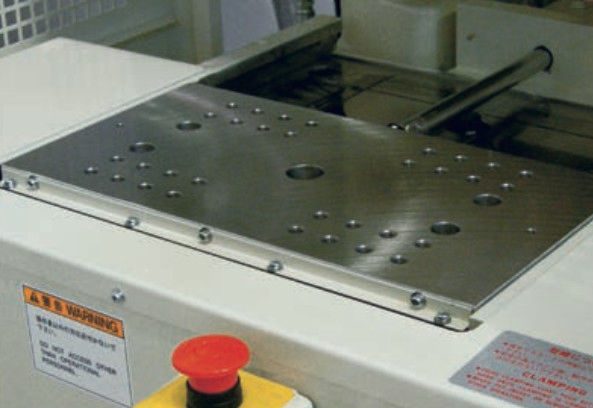

STX sliding type

Sliding type

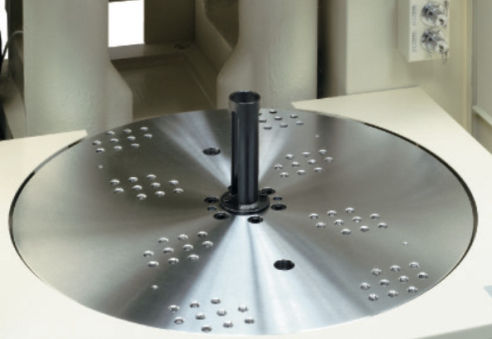

STX turntable type

Turntable type

SPECIFICATIONS

STX10

Item Unit 2V
Screw diameterinch
(mm)
0.63
(16)
0.75
(19)
0.87
(22)
Injection capacityinch3
(cm3)
(oz)
0.8
(13)
(0.4)
1.1
(18)
(0.6)
1.5
(25)
(0.8)
Max. injection pressurepsi
(MPa)
(kgf/cm2)
38162
(263)
(2684)
26989
(186)
(1898)
20169
(139)
(1418)
Clamping force USton
(kN)
(tf)
11
(94)
10
Clamping stroke inch
(mm)
6.7
(170)
Min. mold thickness inch
(mm)
5.1
(130)
Max. daylight opening inch
(mm)
11.8
(300)
Die plate dimensions (H×V) inch
(mm)
15.7x7.9
(400x200)
Ejector stroke inch (mm) STX10 (Single-stage): 2.4 (60)
STX10S (Sliding): 1.6 (40)
STX10R (Turntable): 1.6 (40)

STX20

Item Unit 2V | 5V
Screw diameterinch
(mm)
0.63
(16)
0.75
(19)
0.87
(22)
|0.87
(22)
1.02
(26)
1.18
(30)
Injection capacityinch3
(cm3)
(oz)
0.8
(13)
(0.4)
1.1
(18)
(0.6)
1.5
(25)
(0.8)
|2.1
(35)
(1.2)
3.0
(49)
(1.6)
4.0
(65)
(2.2)
Max. injection pressurepsi
(MPa)
(kgf/cm2)
38162
(263)
(2684)
26989
(186)
(1898)
20169
(139)
(1418)
|37146
(256)
(2612)
26554
(183)
(1867)
20024
(138)
(1408)
Clamping force USton
(kN)
(tf)
22
(193)
20
Clamping stroke inch
(mm)
7.9
(200)
Min. mold thickness inch
(mm)
5.9
(150)
Max. daylight opening inch
(mm)
13.8
(350)
Die plate dimensions (H×V) inch
(mm)
17.7x9.8
(450x250)
Ejector stroke inch (mm) STX10 (Single-stage): 2.6 (65)
STX10S (Sliding): 1.8 (45)
STX10R (Turntable): 1.8 (45)

● Specifications apply to U.S. machines only.
● All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
● NISSEI is not responsible for any inaccuracies contained herein.
● Please consult our sales representative or NISSEI regional offices before designing a mold.
● Actual plasticizing capacity may vary, depending on the molding conditions and material used.
